Rubycom Polymer Multi-Layer Capacitors (PMLCAP)

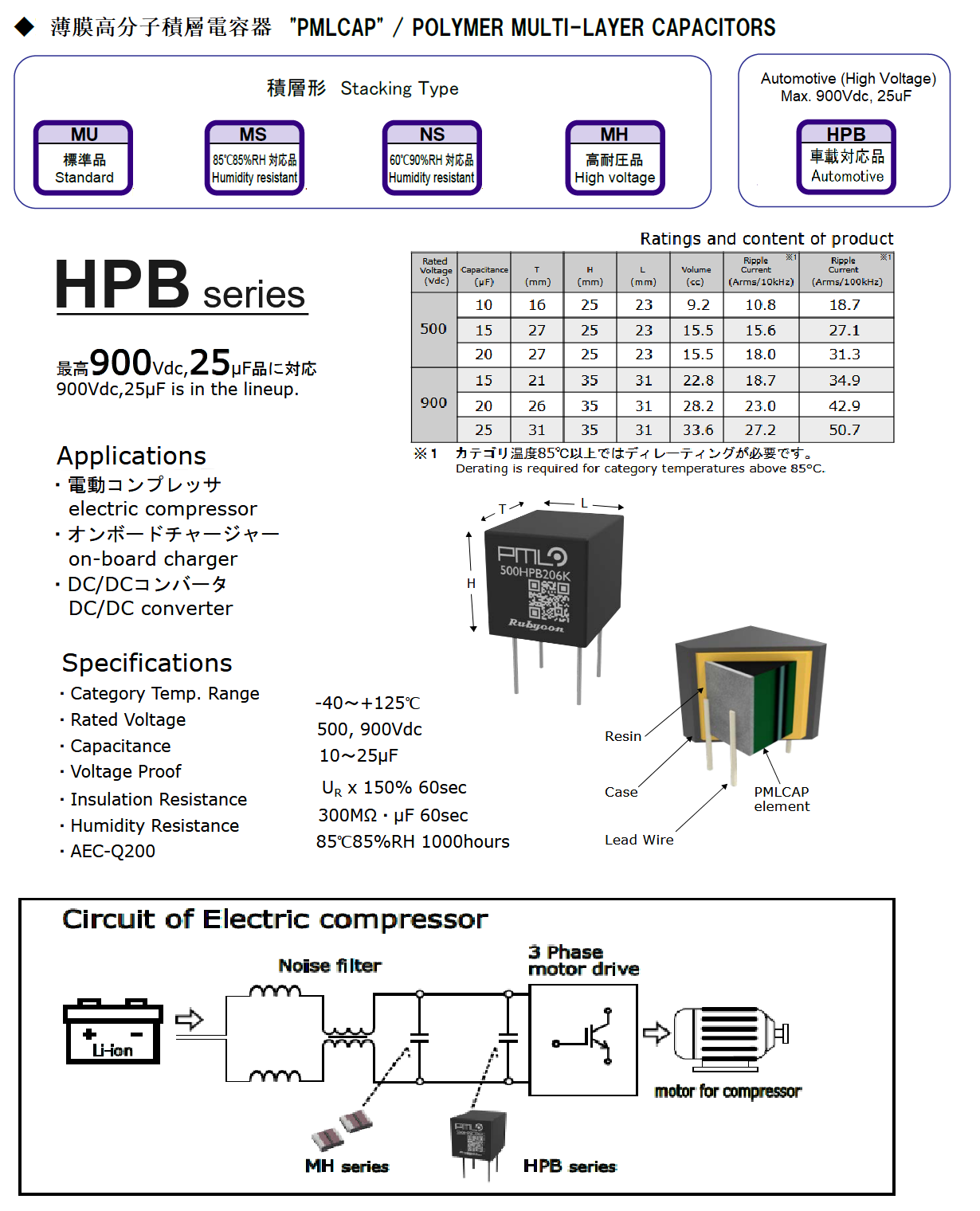

Rubycom Polymer Multi-Layer Capacitors (PMLCAP) launches various series to provide customers with higher quality, high performance and cost-effective products. The latest HPB series is high voltage, large capacitance and ultra-small size (Voltage: 500Vdc & 900Vdc;  Capacitance range: 10uF~25uF; length and width from 16~31mm, height from 25-35mm). It is most suitable for use in EV application such as electric compressors, OBC and DC-DC converters. The relevant product specifications are as follows:

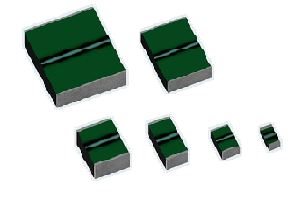

The other SMT PML products (MU, MS, NS and MH series) covers wide range of applications with excellent performance and characteristic:

l   Suitable for audio circuit. Replacement from ceramic capacitors (MLCC)

l   Suitable for sensor circuit. No piezoelectric effect of ceramic cap (MLCC)

l   No squeal occurs with LCD driver and DCDC converter

l  Suitable for RF circuit & PLL synthesizer circuit

l   No risk of short circuit, smoke or fire due to cracks

To download Product Specification :  Rubycon-film-and-pmlcap-catalog.pdf

To download Automotive Application Catalog:Rubycon-automotive-application-catalog.pdf
