| Rubycon Lifetime Calculation of Aluminum E-Capacitor (Lead-wire & SMD type) |
| Editor：admin Published：2024-03-27 00:07:09 Views： 15245 |
|

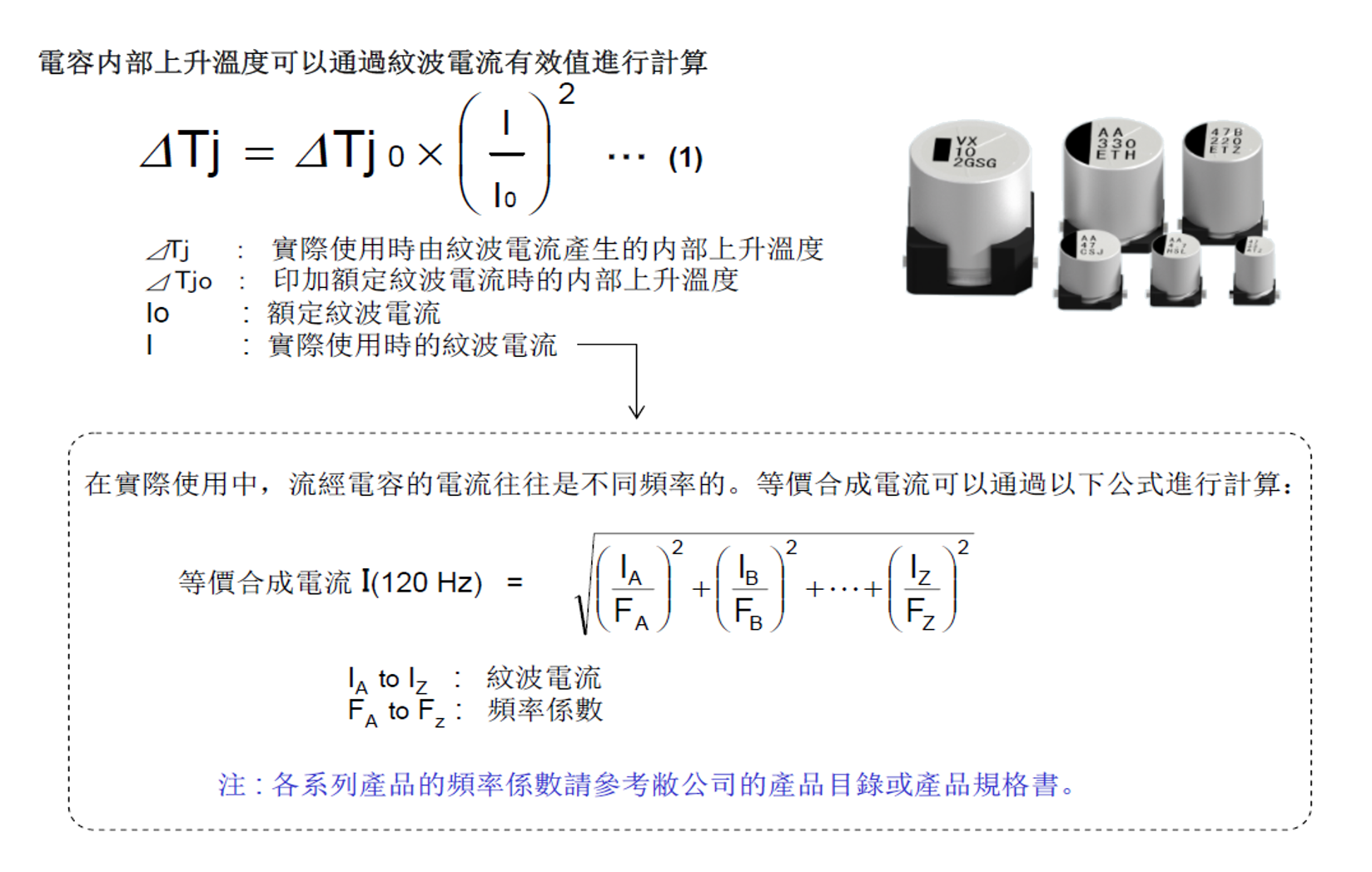

1. Calculation on temperature rise⊿Tj of the capacitor based on the ripple current

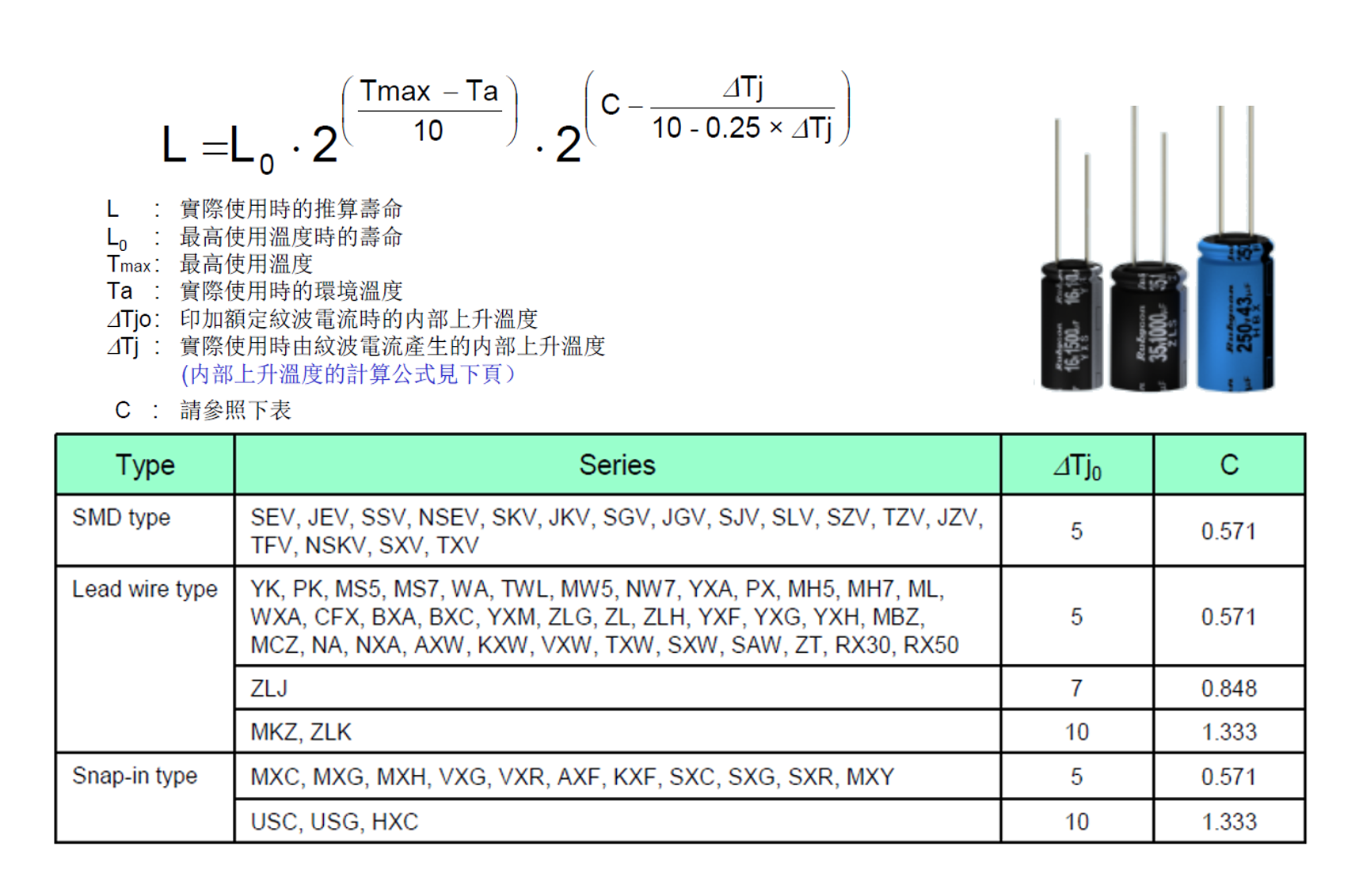

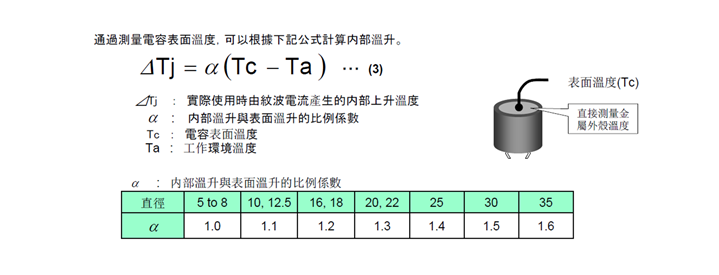

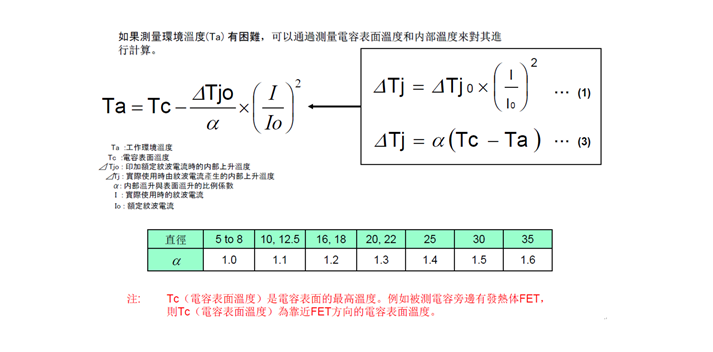

2. Calculation on the temperature rise inside the capacitor⊿Tj by measuring the surface temperature of the capacitor 3. Ambient temperature (Ta)
Click to download technical information: Note: The above load-life calculation is only applicable to Rubycon's Aluminum Electrolytic capacitors. If customers have any other questions or requirements, please feel free to CONTACT US. |
